SMD 7-Segment Display
  • SMD 7-Segment DisplaySMD 7-Segment Display
  • SMD 7-Segment DisplaySMD 7-Segment Display

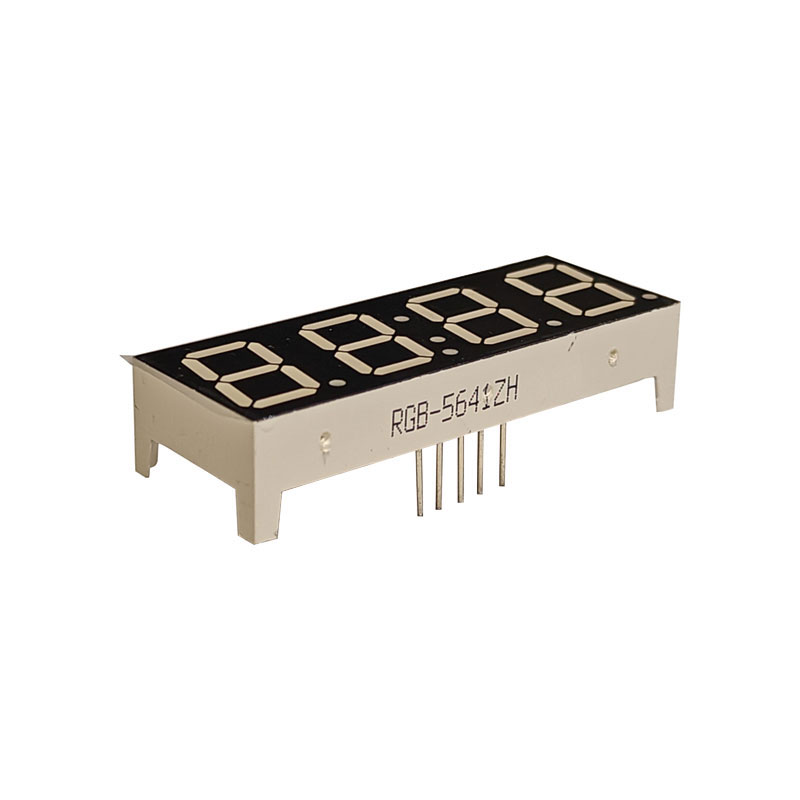

SMD 7-Segment Display

Product model: RGB-5641ZH
Main materials: LED, PPO, etc.;
As the professional manufacturer, we would like to provide you SMD 7-Segment Display.It has a wide range of application scenarios, including household appliances, including air conditioners, microwave ovens, washing machines, air purifiers, disinfection cabinets, etc., electronic clocks, mobile power supplies, measuring tools, commercial products, such as advertising display screens, information display screens, stock market display screens, and digital signboards.


Model


Material Color Description
5641ZH-1 GaAlAs White light Common cathode
5641ZH-2 GaAlAs White light Common Yang
Note: The color of this SMD 7-Segment Display can be customized according to customer needs



As the professional manufacturer, we would like to provide you SMD 7-Segment Display.Depending on the advanced processing facilities,an experienced hi-tech team and the excellent after-sale service,marked all over the country as well as exported to the overseas and we have achieved a create reputation from our customers. We would like to create a wonderful future with numerous customers together.

1. The display color is rich, it can display white light, red light, blue light, green light..., with different colors and display effects, to achieve a gorgeous display effect;

2. The SMD 7-Segment Display has low power consumption, high reliability, DC 2.6~3.6V power supply, and can be used normally in low temperature -20 ℃/high temperature 75 ℃ environment; at the same time, it can be potted with epoxy resin to achieve moisture-proof and waterproof functions;

3. The product structure is compact and can be customized according to customer requirements, including external dimensions and height;

4. The display effect of the product is excellent and has super high brightness. Even in an environment with high light illumination, it can be easily used. The display content is clear and discernible, whether it is numbers, letters or graphics, it can be presented in bright colors and sharp lines;

5. The SMD 7-Segment Display has a long life. Our company's products are made of excellent materials, advanced processing technology, long light decay cycle, and strong anti-yellowing ability;

6. The product has high cost performance and short delivery cycle

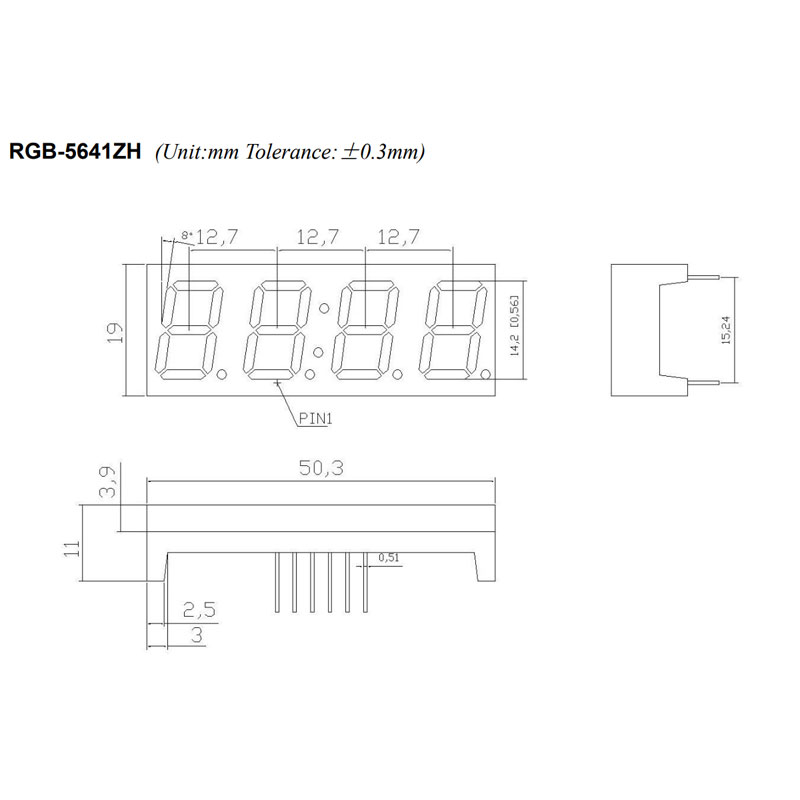

Drawings

Electrical parameters

Parameter Symbol Maximum Rating Units
Power Dissipation Pd 100 mW
Forward Current IF 25 mA
Peak Forward Current IFP 150 mA
Reverse Voltage VR 5 V
reverse withstand voltage Vz ≥10V(IR≤10uA)(Transient test) V
Operating Temperature Range Topr -20→75℃
Static Voltage Var 500 V


Color Parameter Test Symbol Min Type Max Unit
Blu-ray
Luminous Intensity
IF=20mA Iv 560 -- 600 mcd
Forward Voltage VF 2.6 -- 3.6 V
REVERSE Current VR=5V IR 10 uA
REVERSE Voltage VR 5 V
Color temperature 6000 -- 6500 K
