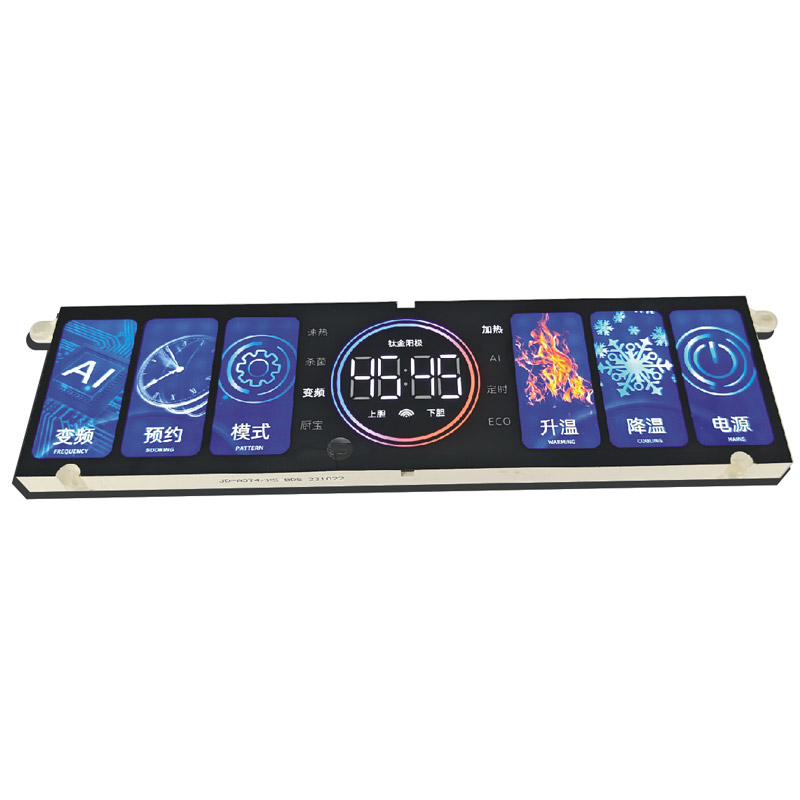

LED Digital Color Screen

Product model: RGB-24065
Main materials: LED, PPO, etc.;
You are welcomed to come to our factory to buy the latest selling, low price, and high-quality LED Digital Color Screen. We look forward to cooperating with you. Wide application scenarios, the products are widely used in induction cookers, electric pressure cookers, electric water heaters, electric fans, humidifiers, air conditioners, DVB set-top boxes and other fields as display panels; in the future, with the continuous development of technology, LED digital color screens will shine in more fields


Model Material Color Description
24065-1 GaAlAs White/Blue/Red Common anode
24065-2 GaAlAs White/Blue/Red Common cathode
Note: The LED Digital Color Screen effect can be customized according to customer needs.


1.You are welcomed to come to our factory to buy the latest selling, low price, and high-quality LED Digital Color Screen. We look forward to cooperating with you. Rich in colors, it can display white light, red light, blue light, green light..., different color effects; it can also realize the combination of different color masks to meet various color needs;
2. Low power consumption, high reliability, DC 2.6~3.3V power supply, can be used normally in low temperature -25 ℃/high temperature 75 ℃ environment; at the same time, it can be potted with epoxy resin to achieve moisture-proof and waterproof functions;
3. The LED Digital Color Screen can be customized in size and shape according to customer requirements to match the customer's product use;
4. The LED Digital Color Screen has good display effect, high brightness and high contrast. It can be used in an environment with high light illumination, making the picture clearer and more delicate;
5. Energy saving and environmental protection, long life, our company's products are excellent in material selection, advanced processing technology, long product light decay cycle, and strong anti-yellowing ability;
6. High cost performance and short delivery cycle are our two major advantages, allowing your project to be quickly promoted and seize the market opportunity

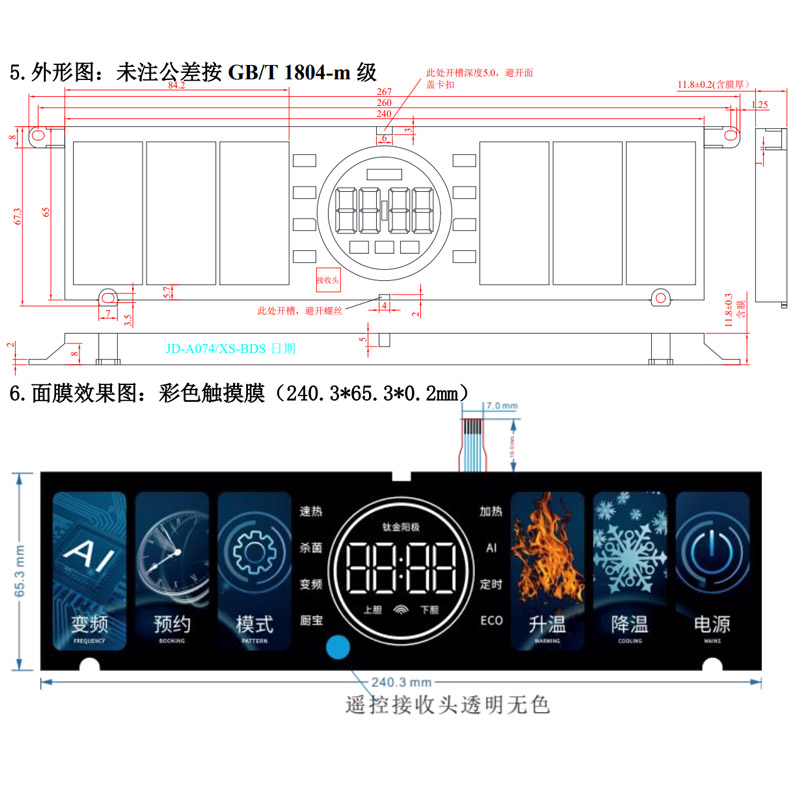

Drawings

Electrical Parameters

Parameter Symbol (Maximum Rating) Units
Power Dissipation Pd 100 mW
Forward Current IF 20 mA
Peak Forward Current IFP 80 mA
Reverse Voltage VR 5 V
reverse withstand voltage Vz ≥10V(IR≤10uA)(Transient Test) V
Operating Temperature Range Topr —20—80℃
Static Voltage Var 2000 V


Color Parameter Test Symbol Min Type Max Unit
Blue Luminous Intensity IF=20mA Iv 560 -- 600 mcd
Forward Voltage) VF 2.6 -- 3.5 V
REVERSE Current VR=5V IR 10 uA
REVERSE Voltage VR 5 V
Color temperature 6000 -- 6500 K
