7-Segment Led Display
  • 7-Segment Led Display7-Segment Led Display
  • 7-Segment Led Display7-Segment Led Display

7-Segment Led Display

Product model: RGB-5631GH
Main materials: LED, PPO, etc.
You can rest assured to buy customized 7-Segment Led Display from us.The application scenarios are wide, including industrial, commercial, transportation, scientific research, home and other fields, and are used in production line equipment; price tags in shopping malls and supermarkets; interest rate display screens, stock quote display screens; information display screens at transportation hubs; traffic light countdown timers and other products.


Model


Material Color Description
Jan-22 GaAlAs Mashiro Common cathode
Feb-22 GaAlAs Mashiro Common Yang
Note: The color of this 7-Segment Led Display can be customized according to customer needs


You can rest assured to buy customized 7-Segment Led Display from us. Over the years, the company puts customers first, and has established product pre-sales, sales, and after-sales service specifications to meet customer requirements in an all-round and whole process, so that our products and services have won the trust of customers and established a strong relationship with customers. A long-term cooperative and mutually beneficial relationship has been established.

1. The product has rich display colors, and can display white light, red light, blue light, green light and other colors of light, with different color effects; it can also achieve different color combinations and combinations to achieve dazzling effects;

2. Low power consumption, high reliability, DC 2.6~3.3V power supply, can be used normally in low temperature -20 ℃/high temperature 75 ℃ environment; at the same time, it can be potted with epoxy resin to achieve moisture-proof and waterproof functions;

3. The product has a compact structure. Whether it is size, color or performance, our products can be customized according to customer requirements. Meet every detail requirement.

4. The product has good display effect and high brightness. It can be used in an environment with high light illumination and the display content is clear;

5. The product has a long life, excellent material selection, and is carefully made with advanced processing technology; its light decay cycle is long and its anti-yellowing ability is excellent. The product can maintain stable performance and excellent appearance during long-term use.

6. The product has a very high cost performance. While the price is reasonable, the quality is excellent and the delivery cycle is short.

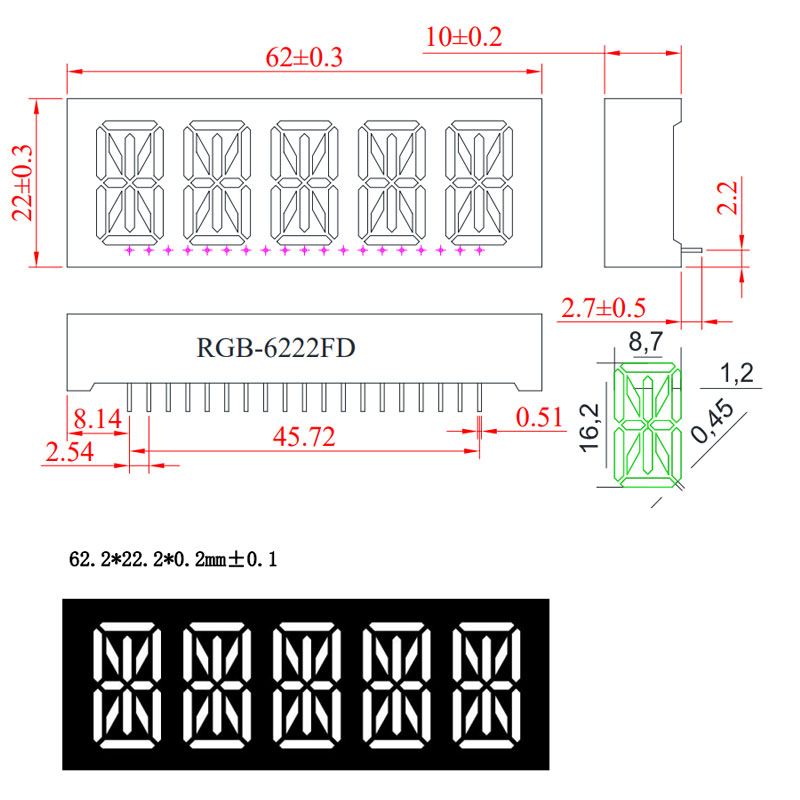

Drawings

Electrical parameters

Parameter Symbol (Maximum Rating) Units
Power Dissipation Pd 100 mW
Forward Current IF 20 mA
Peak Forward Current IFP 80 mA
Reverse Voltage VR 5 V
reverse withstand voltage Vz ≥10V(IR≤10uA)(Transient test) V
Operating Temperature Range Topr -20→75℃
Static Voltage Var >2000 V


Color Parameter Test Symbol Min Type Max Unit
Blu-ray
Luminous Intensity
IF=20mA Iv 560 -- 600 mcd
Forward Voltage VF 2.6 -- 3.3 V
REVERSE Current VR=5V IR 10 uA
REVERSE Voltage VR 5 V
Color temperature 6000 -- 6500 K



Hot Tags: 7-Segment Led Display, China, Manufacturer, Supplier, Factory, Customized, Quality, Discount, Free Sample
