Product model: RGB-26541
Main materials: LED, PPO, etc.;

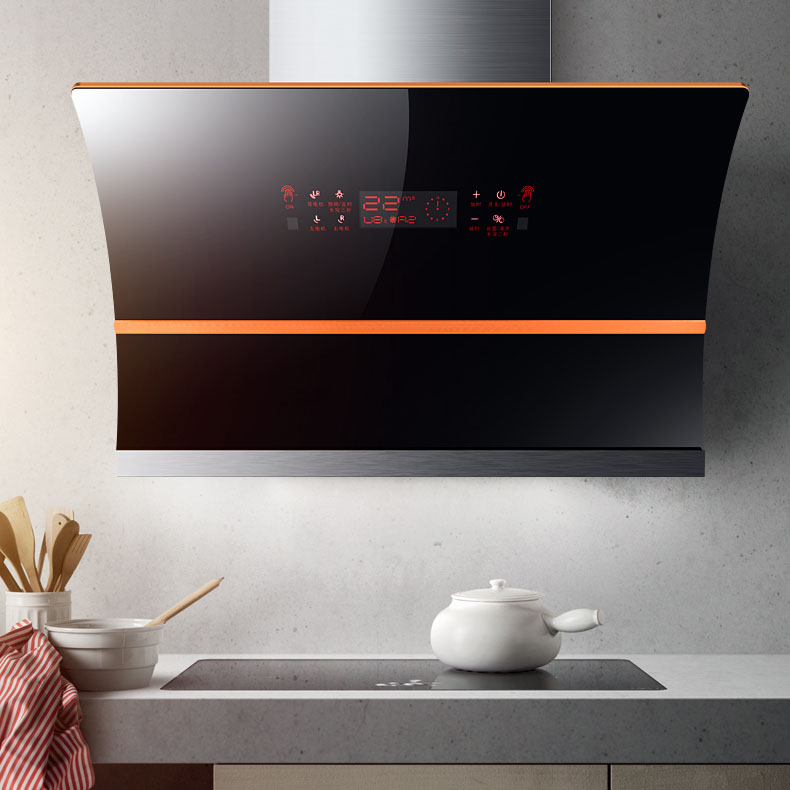

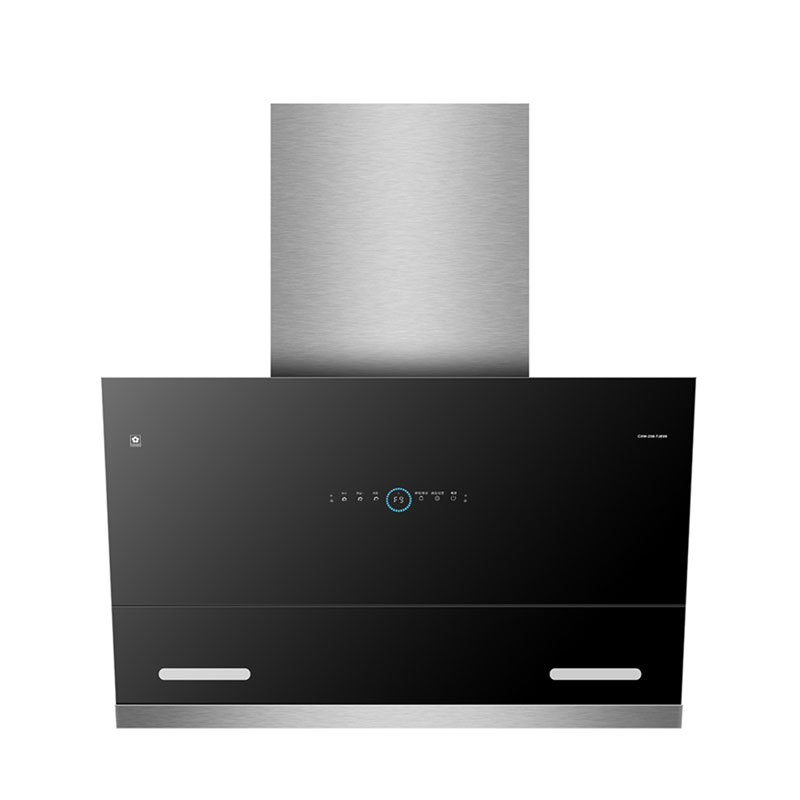

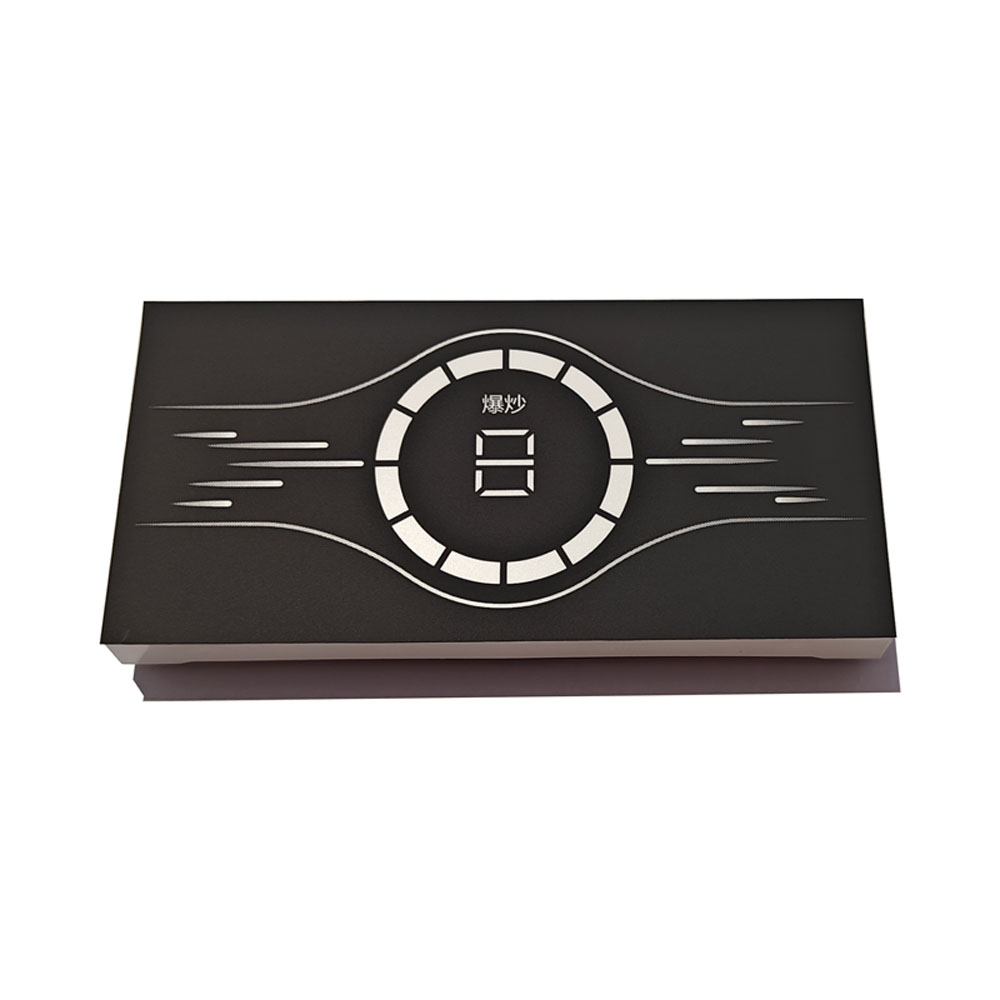

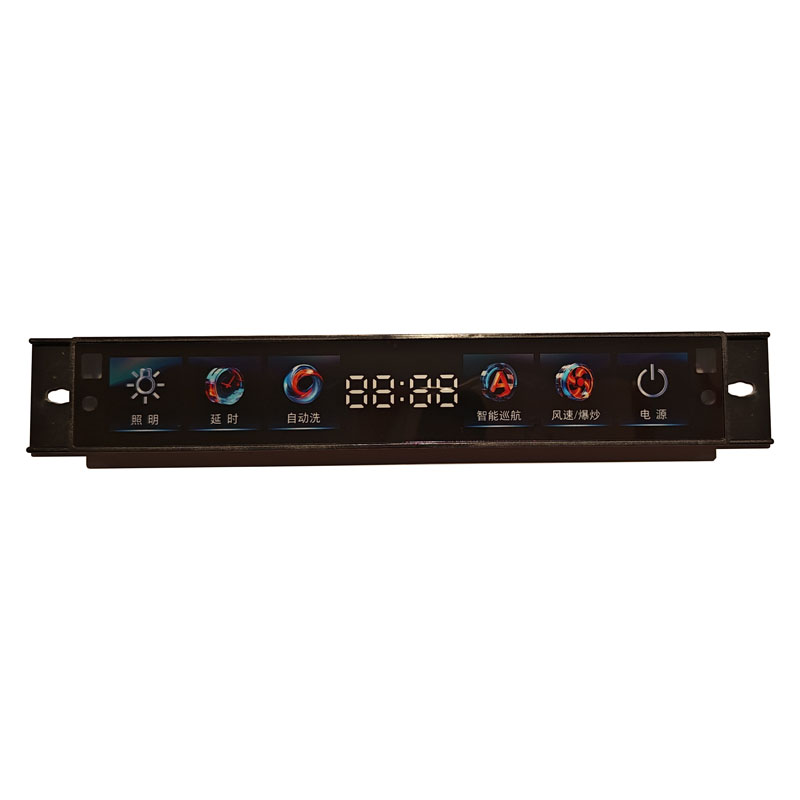

As a professional high quality Range Hood Digital Color Screen manufacturer, you can rest assured to buy it from our factory. Wide application scenarios, the products are widely used in induction cookers, electric pressure cookers, electric water heaters, electric fans, humidifiers, air conditioners, DVB set-top boxes and other fields as display panels; this product is mainly used for range hoods; we can customize the display screens of various range hoods and cooking utensils.
Note: The Range Hood Digital Color Screen effect can be customized according to customer needs.
1.As a professional high quality Range Hood Digital Color Screen manufacturer, you can rest assured to buy it from our factory.Rich in colors, it can display white light, red light, blue light, green light..., different color effects; it can also realize the combination of different color masks to meet various color needs;
2. Low power consumption, high reliability, DC 2.6~3.3V power supply, can be used normally in low temperature -25 ℃/high temperature 75 ℃ environment; at the same time, it can be potted with epoxy resin to achieve moisture-proof and waterproof functions;
3. The Range Hood Digital Color Screen can be customized in size and shape according to customer requirements to match the customer's product use;
4. The product has good display effect, high brightness and high contrast. It can be used in an environment with high light illumination, making the picture clearer and more delicate;
5. Energy saving and environmental protection, long life, our company's products are of excellent material selection, advanced processing technology, long product light decay cycle, and strong anti-yellowing ability;
6. High cost performance and short delivery cycle are our two major advantages, allowing your project to be quickly promoted and seize the market opportunity.

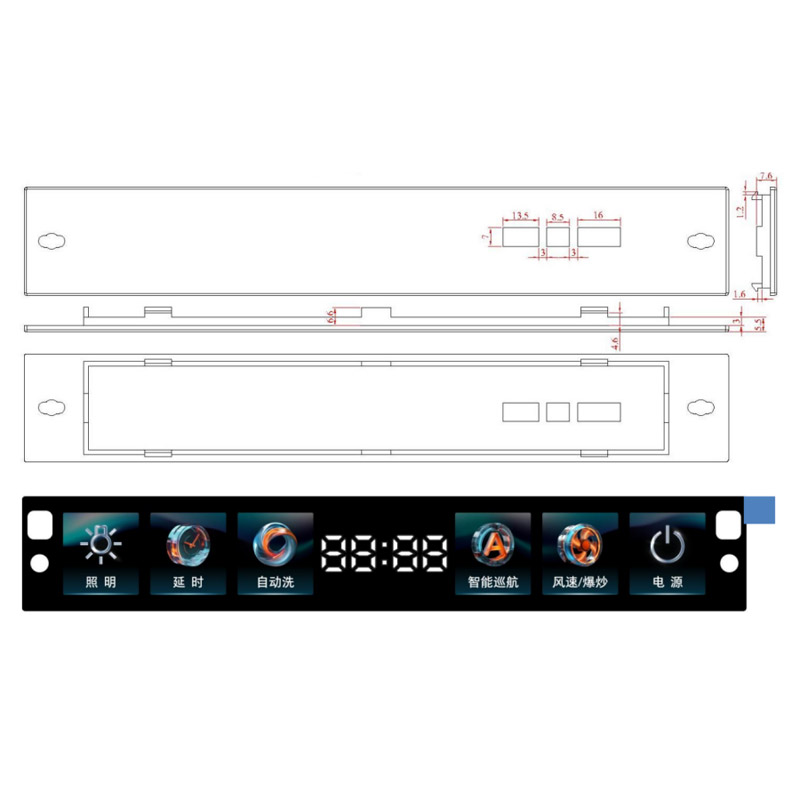

Drawings
Electrical Parameters
Parameter
Symbol
(Maximum Rating)
Units
Power Dissipation
Pd
100
mW
Forward Current
IF
20
mA
Peak Forward Current
IFP
80
mA
Reverse Voltage
VR
5
V
reverse withstand voltage
Vz
≥10V(IR≤10uA)(Transient Test)
V
Operating Temperature Range
Topr
—20—80℃
℃
Static Voltage
Var
2000
V
Color
Parameter
Test
Symbol
Min
Type
Max
Unit
Blue
Luminous Intensity
IF=20mA
Iv
560
--
600
mcd
Forward Voltage)
VF
2.6
--
3.5
V
REVERSE Current
VR=5V
IR
10
uA
REVERSE Voltage
VR
5
V
Color temperature
6000
--
6500
K
