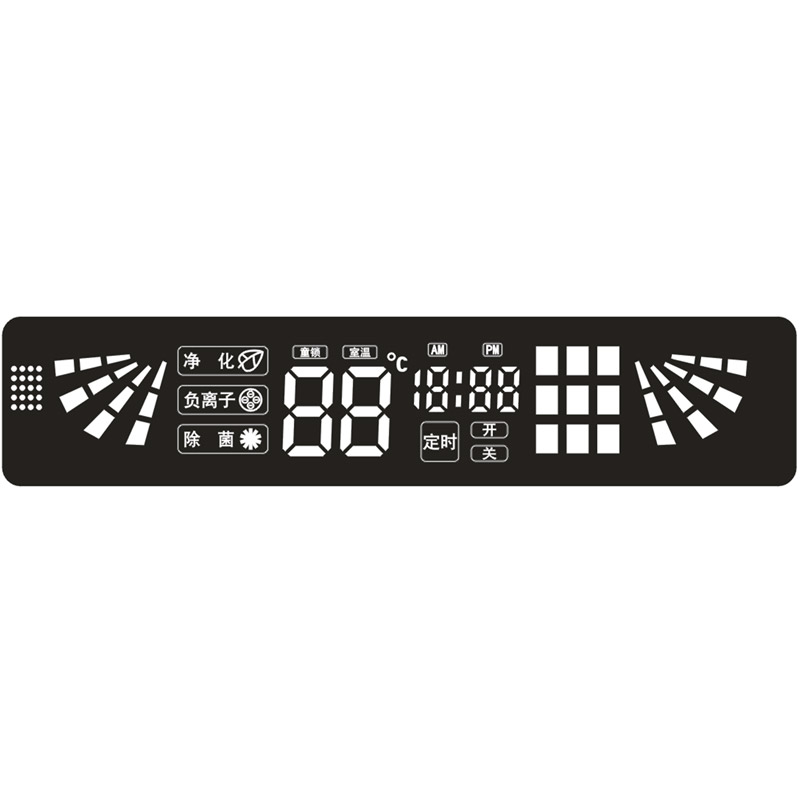

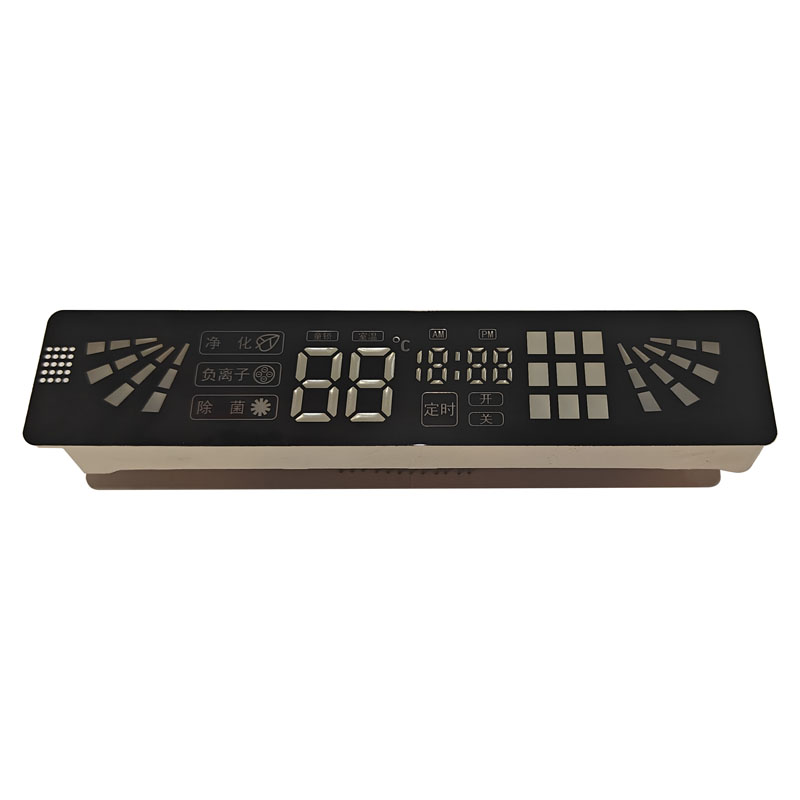

| Model | Material | Color | Description |
| 14629-1 | GaAlAs | Red\Green\Blue\Yellow\White | Common anode |
| 14629-2 | GaAlAs | Red\Green\Blue\Yellow\White | Common cathode |
| Note: The Air Purifier Digital Color Screen effect can be customized according to customer needs. | |||
1.You are welcomed to come to our factory to buy the latest selling, low price, and high-quality Air Purifier Digital Color Screen.Rich in colors, it can display white light, red light, blue light, green light..., different color effects; it can also realize the combination of different color masks to meet various color needs;
2. Low power consumption, high reliability, DC 2.6~3.3V power supply, can be used normally in low temperature -25 ℃/high temperature 75 ℃ environment; at the same time, it can be potted with epoxy resin to achieve moisture-proof and waterproof functions;
3. The Air Purifier Digital Color Screen is tailored for customers;
4. The Air Purifier Digital Color Screen has good display effect, high brightness and high contrast. It can be used in an environment with high light illumination, making the picture clearer and more delicate;
5. Energy saving and environmental protection, long life;
6. High cost performance and short delivery cycle are our two major advantages, allowing your project to be quickly promoted and seize the market opportunity.

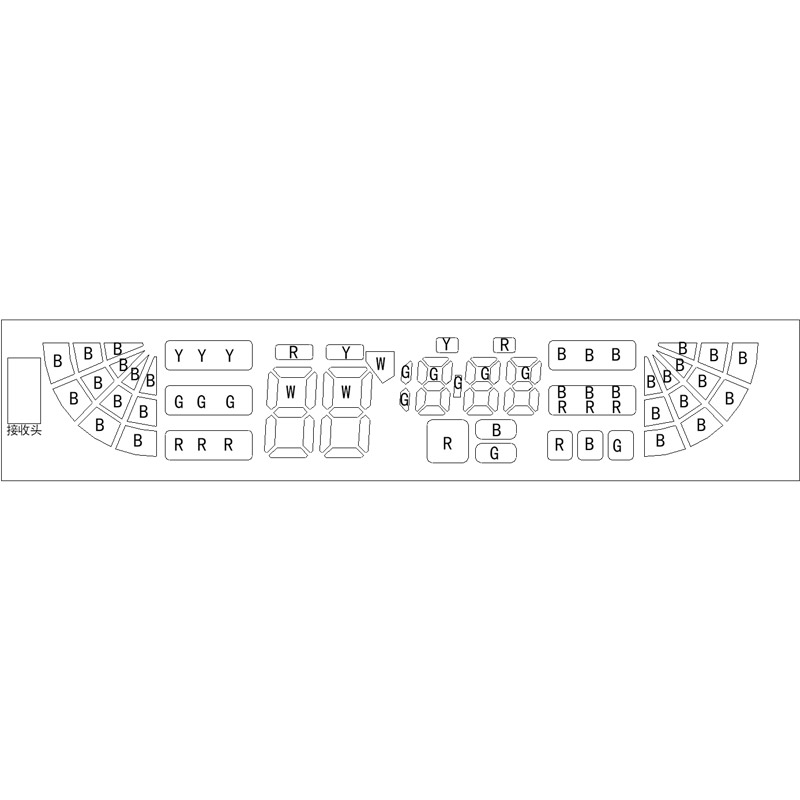

Drawings
Electrical Parameters
| Parameter | Symbol | (Maximum Rating) | Units |
| Power Dissipation | Pd | 100 | mW |
| Forward Current | IF | 20 | mA |
| Peak Forward Current | IFP | 80 | mA |
| Reverse Voltage | VR | 5 | V |
| reverse withstand voltage | Vz | ≥10V（IR≤10uA）(Transient Test) | V |
| Operating Temperature Range | Topr | —20—80℃ | ℃ |
| Static Voltage | Var | 2000 | V |
| Color | Parameter | Test | Symbol | Min | Type | Max | Unit |
| Blue | Luminous Intensity | IF=20mA | Iv | 560 | -- | 600 | mcd |
| Forward Voltage） | VF | 2.6 | -- | 3.5 | V | ||
| REVERSE Current | VR=5V | IR | 10 | uA | |||
| REVERSE Voltage | VR | 5 | V | ||||
| Color temperature | 6000 | -- | 6500 | K |
